SIMPLE MINI BROWSER

                                                           1.Create New Project
src
----------->drag and drop Webkit from Palette
----------------->drag and drop button and name it like go
------------------------>drag and drop Edit Text for web address
-------------------------------->create onclick method for button


                                                   2.Go to src file
src
-------------->create mecthod name from onclick
---------------->make Edit text link using find view by id
------------------->make webview link using find view by id
----------------------->enable java script and client options
coding:

  private EditText edt;
    private WebView web;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        edt=(EditText)findViewById(R.id.editText1);
        web=(WebView)findViewById(R.id.webView1);

    }

    public void go(View v)
    {
    String s="https://"    ;
    String a=s+edt.getText().toString();
    web.getSettings().setJavaScriptEnabled(true);
    web.setWebViewClient(new WebViewClient());
    web.loadUrl(a);
   }

                                                3.Add usesPermission in AndroidManifeast.xml
AndroidManifeast.xml
------------------------->add
------------------------------>usesPermission
----------------------------------->select Internet
--------------------------------------->Run your Project
(click the image)



Thankyou..........................!

SIMPLE VIDIO PLAYER

                                              1.Create A New Project
Layout
--------------->Main_Activity
------------------>Drag and drop Button and Video View from Palette
---------------------->Make Button name Start and add onClickMethod



                                              2.Add 3.gp into raw folder
res
----------------------->Right click res then create raw folder
---------------------------->Add 3.gp into raw
--------------------------------->src file
Click the image

coding:

@Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);


    vid=(VideoView)findViewById(R.id.videoView1);
    Uri uri=Uri.parse("android.resource://"+getPackageName()+"/"+R.raw.zz);
    vid.setVideoURI(uri);
    vid.setMediaController(new MediaController(this));
    vid.requestFocus();

    }

    public void play(View v)
    {
    vid.start();

    }

                                                    3.Run your Project

-------------------->Click start button then video will be play
-------------------------->Click Video then Videocontroller will be display

Thank you...........!






SIMPLE AUDIO PLAYER

                                                    1.Create  a new Project

Layout
--------------->Main_Activity.xml
------------------>Drag and Drop 3 image buttons from palette
--------------------->name it like play,pause,stop
------------------------>add onClick method names like play pause stop

                                            2.Add mp3 file into raw folder
layout
--------------->right click layout
-------------------->New
----------------------->Folder ,(Name :raw)
-------------------------->type onclick method
-------------------------------->Create media player variable

(Click below image)





 Run Your Project...............






SIMPLE SQLITE DATABASE APPLICATION

                                                   1.SQL  BASIC SYNTAX
Create DataBase
                   CREATE DATABASE database_name
Create Table
                    CREATE TABLE table_name
                        (
                        column_name1 data_type,
                        column_name2 data_type,
                        column_name3 data_type,
                        ....
                        )
InsertValues
                       INSERT INTO table_name
                      VALUES (value1, value2, value3,...)
                      like below
                      INSERT INTO Persons
                     VALUES (4,'Nilsen', 'Johan', 'Bakken 2', 'Stavanger')

 DeleteValues
                     DELETE FROM table_name
                    WHERE some_column=some_value
                     like below
                     DELETE FROM Persons
                     WHERE LastName='Tjessem' AND FirstName='Jakob'
UpdateValues
                   UPDATE table_name
                   SET column1=value, column2=value2,...
                   WHERE some_column=some_value
 -------------------------------------------------------------------------------------------------------------
                                                       2.SQLiteOpenHelper



 SQLiteOpenHelper is Superclass ,Which is use for Database Operations











SIMPLE SPLASH SCREEN

1.Create Splash Screen(click image)
Layout
--------------->Activity_Main.xml
--------------------->Design Splash(insert logo and more)


2.Create Menu xml
Layout
---------------->Right click
------------------------>New
------------------------------->Android xml file
-------------------------------------->Enter Name(like menu)
-------------------------------------------->Design menu options

3.Main_Activity.java
Src
------------------>Main_Activity.java
------------------------>Create Thread
---------------------------->Call run method
------------------------------->Call sleep(4000)
---------------------------------->Surround with try catch
-------------------------------------->Call finish() method(which is useful for don`t show again the Splash)
-------------------------------------------->Call Intent(Which use for jump to other activity)

Coding:
public class MainActivity extends Activity {
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Thread t=new Thread()
{
public void run()
{
try {
sleep(4000);
finish();
Intent i=new Intent(MainActivity.this,menu.class);
startActivity(i);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
};
t.start();
}
4.menu.java
Src
--------------->Create Menu.java (copy Main_Activity.java and paste into Src then Name it like menu)
------------------------>Change setContentView to menu.xml

5.Add Menu Activity to AndroidManiFest.xml
-------------------------->Refer One Screen two Other Screen`s post
Thank you..................................................!

SIMPLE LISTVIEW WITH ARRAY ADAPTER

                                               1.CREATE NEW LISTVIEW PROGAMME
 ---------->Create New Project
--------------->Drag and Drop ListView From Palette
                                               2.CREATE ARRAY ADAPTER
 Values
--------------->String.xml
--------------------->ADD
------------------------->String array elements
----------------------------->Type Name of String Array
---------------------------------->Click String Array(name will shows)
---------------------------------------->Click Add
------------------------------------------->Item
----------------------------------------------->Ok
-------------------------------------------------->Type Item Value
(click the image)

                                                            3.SOURCE CODE

Src
------------->MainActivity.java
------------------>Create ListView variable
---------------------->Create Array Adaper
-------------------------->set Adapter to listview`s variable
-------------------------------->Create ListViewOnItemClickListner
----------------------------------->Check Item Clicked or not(arg2 is ID value like 0,1,2 of array adapter )
---------------------------------------->Display Toast Message

Coding:

public class MainActivity extends Activity {

    private ListView li;
    private ArrayAdapter<CharSequence> ar;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        li=(ListView)findViewById(R.id.listView1);

ar=ArrayAdapter.createFromResource(getApplicationContext(), R.array.adapter,
        android.R.layout.simple_list_item_1);

    li.setAdapter(ar);
    li.setOnItemClickListener(new OnItemClickListener()
    {
        @Override
        public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
                long arg3) {
            if(arg2==0)
            {
Toast.makeText(getApplicationContext(), "ANDROID", Toast.LENGTH_LONG).show();
            }
        }
        }
        );
    }

Output shows like this.

 Thank you................................!

HOW TO CHANGE ONE SCREEN TO ANOTHER SCREEN

                                                    1.CREATE NEW PROJECT

Drag and Drop Button
------------------>Right Click Button
---------------------->EditText
---------------------------->Will be Open DialogBox
--------------------------------->NewString
------------------------------------>Type Button Name on STRING option(FirstScreen)
---------------------------------------->Type Resource Id on NEW STRING R.ID (fs1)
------------------------------------------->Click ok
now Your Button Name Will be change like FirstScreen

Now right click button ,choose properties then onClick name:call2 (refer simple project link)




                                                         2.Create Second Screen

Right click Layout folder from your project
-------------------------->New
------------------------------>Android xml file
--------------------------------->Type Name on file option(second)
Do first operation darg and drop button and edittext(SecondScreen)

                                                  3.Create Another One Activity Java file

Src
------------------>Copy MainActivity.java
------------------------>Paste Sre folder
----------------------------->Change Name :sec
---------------------------------->Change setContentView like this

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
public class sec extends Activity {
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.second);
    }


                                                             4.Intent Concept

Intent useful for jump One Activity to Another Activity
Src
-------------->Click MainActivity.java ,we have alredy create
                                 Method name using ONCLICK METHOD
                                       Name That is call2.
 --------------->Create function and use the INTENT SYNTEX

public class MainActivity extends Activity {

@Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }

    public void call2(View v)
    {
        Intent jump=new Intent(this,sec.class);
        startActivity(jump);
     }

                                                        5.ADD second Activity in AndroidManifest file

Click AndroidManifest.xml in your Project

------------------------>Application (bottom tap )
---------------------------->C option
---------------------------------->Activity
---------------------------------------->Add
----------------------------------------------->sec Activity
---------------------------------------------------->Ok

(Click this image for big view )



Now Run Your Project..............!

CREATE SIMPLE ANDROID APPLICATION

                                                          Open your eclipse

1.File
---->NewProject
------------>Choose Android Application Project
------------------------>Type Your Project Name
----------------------------------->Click Next
------------------------------------------>Click Next
------------------------------------------------>Finish

Now project show like this........





                                                   How to Drag And Drop Button into Display

2.Layout
--------------->Palette
------------------>Button
---------------------->Drop on Display
Outline Shows Button link

---------------->Button
-------------------->Right Click Propertise
-------------------------->Onclick type Function Name

 See the Following Image




                                                  3.Click mail.xml options .It will Show like this




                                                                  4.Now go to Src file
--------------------------->Java file
--------------------------------->Create a Function as Button Onclick funcction name
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {
    Button but;
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        but=(Button)findViewById(R.id.button1);

    }

    public void callme(View v)
    {
        but.setText("helloButton");
    }
}





                                                5.Now you are ready to run you project

----------------->Right click the Project
------------------------>Configure
------------------------------>Android
----------------------------------->Target
----------------------------------------->Click Avd
----------------------------------------------->Apply
---------------------------------------------------->Run




                                                 6.Wait Few Seconds Auto open Emulator

----------------------------->Unlock
-------------------------------->Running Your Apps



                                                                       7.Click Button




That it ......

HOW TO PLUGIN AND USE

                                                       1.android sdk Unzip file open:

it will look like:




Click sdk manager It will shows





Install version SDK platform is important to emulator


                                        2.CONFIGURE AVD MANAGER

3.Emulator configure:






                                         3.PLUG IN ADT WITH ECLIPSE:
Open Eclipse :
click help options in menubar ---->Install software


Name:Type ADT or something
Location:Choose downloaded ADT ZIP file














Now restart Eclipse

Eclipse look like this:

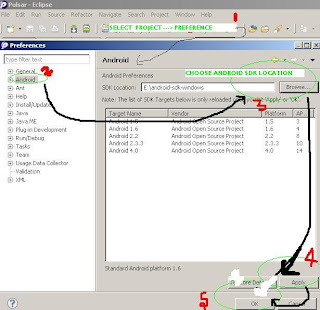

                                           4.CHOOSE SDK LOCATION












Now you are ready to develop the android application.

DEVELOPMENT SOFTWARE DOWNLOAD

                                                                          All are freeware software

1.Java JDK download click the image

Click

 2.Eclipse IDE

click

3.Android SDK

click

If you have slow internet speed  use Offline sdk download using InternetDownManager(IDM)
click following link.

                                                                          click me



4.Icon Creator(which is need key .if you need key ,you just ask me)

click

If you develop android game  download following software also



5. Inkscape - svg img creator

click



6.Gimp - graphics editor

click




INTRODUCTION ABOUT ANDROID

Android is a Linux-based operating system designed primarily for touchscreen mobile devices such as smartphones and tablet computers.

Programmed : C, C++, Java

Source model: Open source

Official website www.android.com

Android, Inc. was founded in Palo Alto, California in October 2003 by Andy Rubin

Google acquired Android Inc. on August 17, 2005, making it a wholly owned subsidiary of Google

Versions:

Version	Code name	Release date	API level	Distribution (March 4, 2013)
4.2.x	Jelly Bean	November 13, 2012	17	1.6%
4.1.x	Jelly Bean	July 9, 2012	16	14.9%
4.0.x	Ice Cream Sandwich	December 16, 2011	15	28.6%
3.2	Honeycomb	July 15, 2011	13	0.9%
3.1	Honeycomb	May 10, 2011	12	0.3%
2.3.3–2.3.7	Gingerbread	February 9, 2011	10	44%
2.3–2.3.2	Gingerbread	December 6, 2010	9	0.2%
2.2	Froyo	May 20, 2010	8	7.6%
2.0–2.1	Eclair	October 26, 2009	7	1.9%
1.6	Donut	September 15, 2009	4	0.2%
